ToLEDo SUPERIA T8 CCG L1500 4100LM 840 75K PET SL
ToLEDo Superia T8 CCG and AC
Product features
- A range of high performance ToLEDo Superia T8 LED tubes with reminiscent look of fluorescent tubes
- High performance glass construction design
- High lumen output, with an impressive lumen efficacy of 185 lm/W
- Omnidirectional light distribution and wide beam angle
- Average rated life of 75,000 hours
- Lamp length - 1500mm
- High power factor
- 200,000 switching cycle
- 5 years warranty for complete peace of mind
- Compatible with electromagnetic gear / CCG and also suitable for direct mains operation (220-240V)
- No bending or discoloration over time
- Suitable for general illumination in offices, supermarkets, department stores, train stations, petrol stations, parking lots, waterproof luminaires and maintenance free applications
Product overview
| Product overview | |
|---|---|
| Product name | ToLEDo SUPERIA T8 CCG L1500 4100LM 840 75K PET SL |
| Technology | LED |
| Lamp shape | Tube, double-ended |
| Cap/Base | G13 |
| Lamp finish | Frosted/Coated |
| General application | Hospitality, Logistics & Industry, Residential & Consumer |
| ETIM Class | EC001959 |
| E-number FI | 4941354 |
| Useful luminous flux (Φuse) | 4100 |
| Correlated colour temperature (k) | 4000 |
| Light colour | Cool White |
| CRI (Ra) | 80 |
| Colour Variation Initial (SDCM) | SDCM6 |
| Beam Angle (°) | 170 |
| Photobiological Risk Group | RG0 |
| Power consumption (W) | 22.2 |
| Wattage (W) | 22.2 |
| Control gear type | LED driver constant current |
| Dimmable | No |
| Dimming method | N/A |
| Housing colour | White |
| IP rating | IP20 |
| Product EAN number | 5410288302492 |
| Warranty | 5 years |
Product Data
| General data | |
|---|---|
| Product name | ToLEDo SUPERIA T8 CCG L1500 4100LM 840 75K PET SL |
| Technology | LED |
| Lamp shape | Tube, double-ended |
| Cap/Base | G13 |
| Lamp finish | Frosted/Coated |
| General application | Hospitality, Logistics & Industry, Residential & Consumer |
| Operating temperature range (°C) | -20°C...+55°C |
| ETIM Class | EC001959 |
| E-number FI | 4941354 |
| Warranty | 5 years |
| Optical data | |
|---|---|
| Useful luminous flux (Φuse) | 4100 |
| Correlated colour temperature (k) | 4000 |
| Light colour | Cool White |
| CRI (Ra) | 80 |
| Colour Variation Initial (SDCM) | SDCM6 |
| Beam Angle (°) | 170 |
| Photobiological Risk Group | RG0 |
| Electrical data | |
|---|---|
| Power consumption (W) | 22.2 |
| Wattage (W) | 22.2 |
| Current (A) | 0.1 |
| Primary Supply/Product voltage - min (V) | 220 |
| Primary Supply/Product voltage - max (V) | 240 |
| Lamp power factor | 0.9 |
| Control gear required | No |
| Control gear type | LED driver constant current |
| No. Of switching cycles before premature failures | >50000 |
| Dimmable | No |
| Dimming method | N/A |
| Inrush Current (A) | 16.2 |
| Inrush Duration (µs) | 50 |

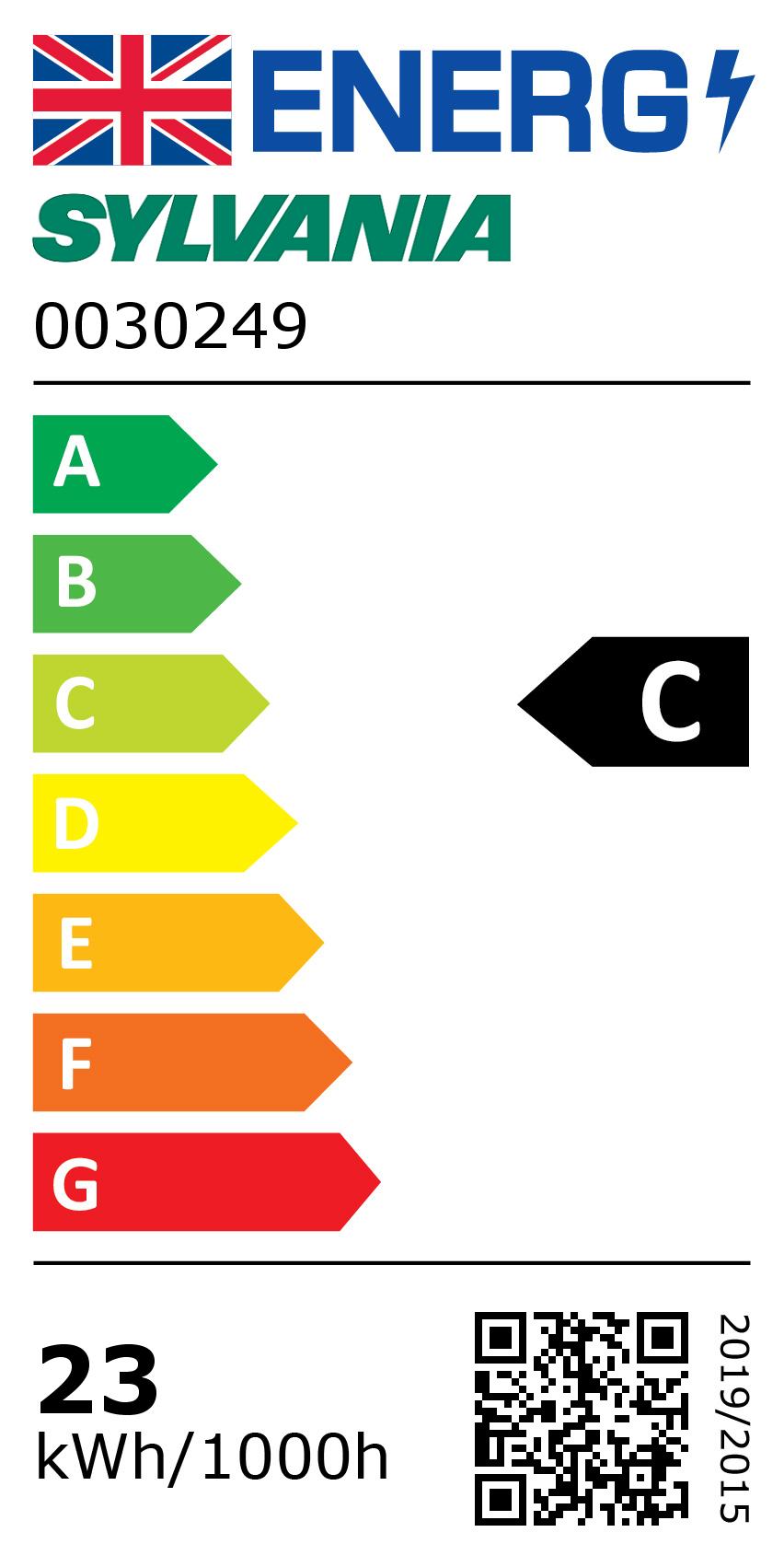

| Lamp Energy Label (class) | C |
| Nominal Frequency (Hz) | 50/60Hz |
| Max. products per 10A C Breaker | 140 |
| Max. products per 13A C Breaker | 190 |
| Max. products per 16A C Breaker | 230 |
| Max. products per 20A C Breaker | 290 |
| Max. products per 10A B Breaker | 89 |
| Max. products per 13A B Breaker | 115 |
| Max. products per 16A B Breaker | 140 |
| Max. products per 20A B Breaker | 175 |
| Lifetime data | |
|---|---|
| Lifespan L70 B50 | 75000 |
| Physical data | |
|---|---|
| Housing colour | White |
| IP rating | IP20 |
| Nominal Product Length (mm) | 1499 |
| Nominal Product Diameter (mm) | 28 |
| Weight (kg) | 0.26 |
| Packaging | |
|---|---|
| Product EAN number | 5410288302492 |
| Packaging single length / height (cm) | 155.5 |
| Packaging single width (cm) | 2.9 |
| Packaging single depth (cm) | 2.9 |
| DUN14 (inner) | 15410288302499 |
| Units per outer package | 10 |
| Packaging outer length / height (cm) | 161.0 |
| Packaging outer width (cm) | 22.0 |
| Packaging outer depth (cm) | 10.5 |
| Safety data | |
|---|---|
| Optimal operating condition (°C) | -20-55 |
| Breakage cleaning instructions | Not applicable |
| Special purpose lamp | No |
| Suitable for household illumination | Yes |
| Safety message | Suitable for totally enclosed fixture |
